HOME / MAIN BUSINESSES/ Electrical Control Systems

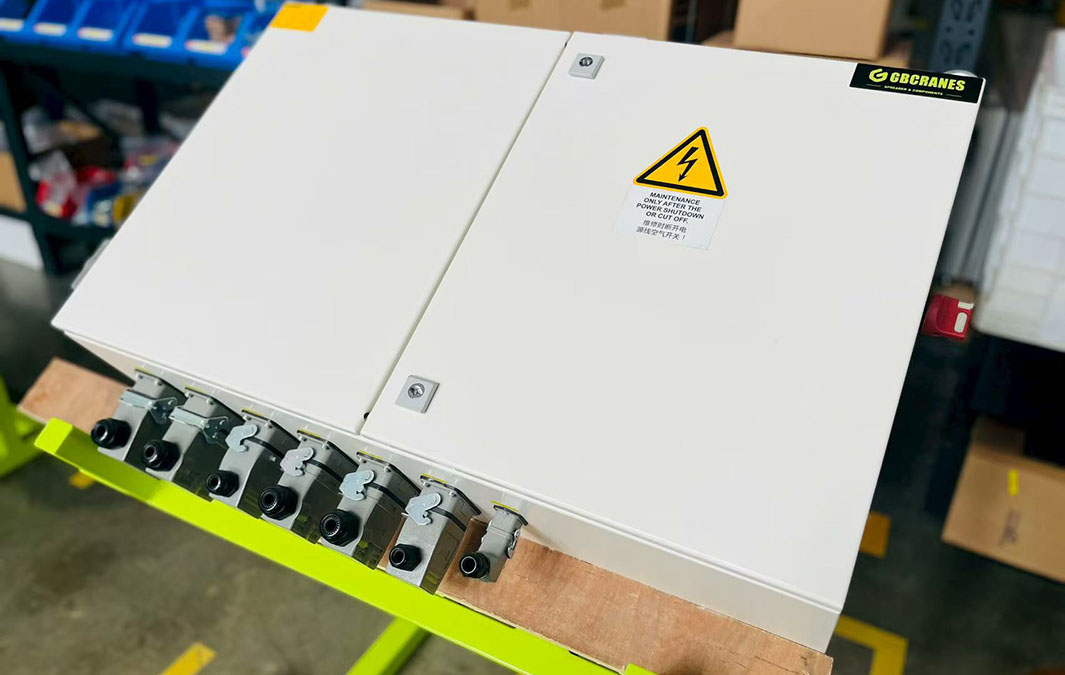

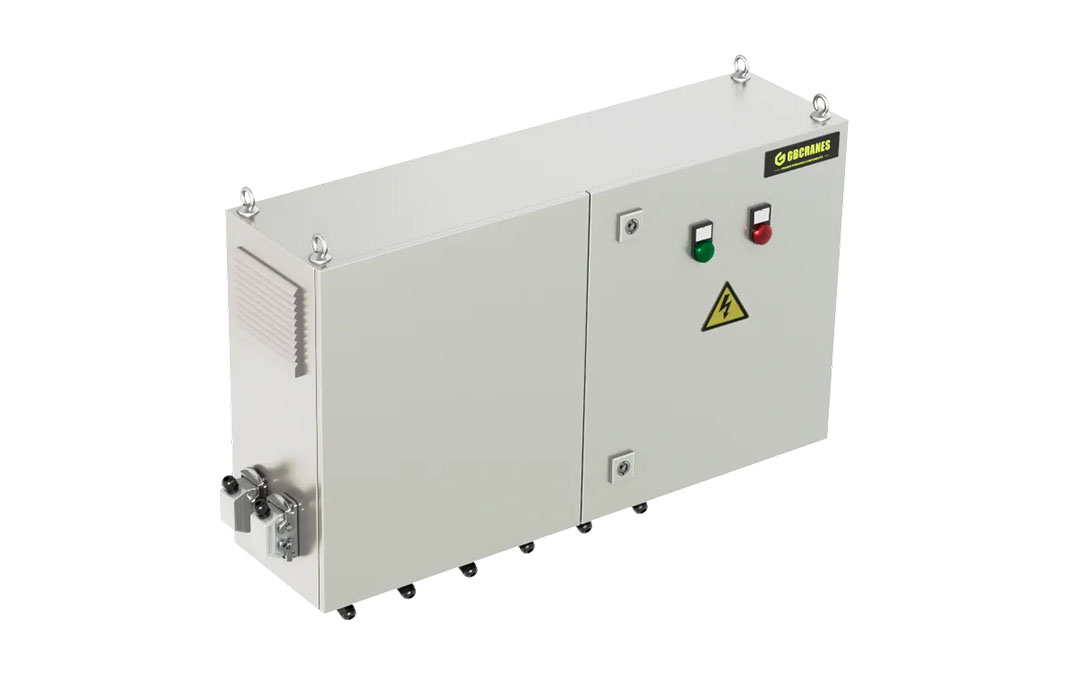

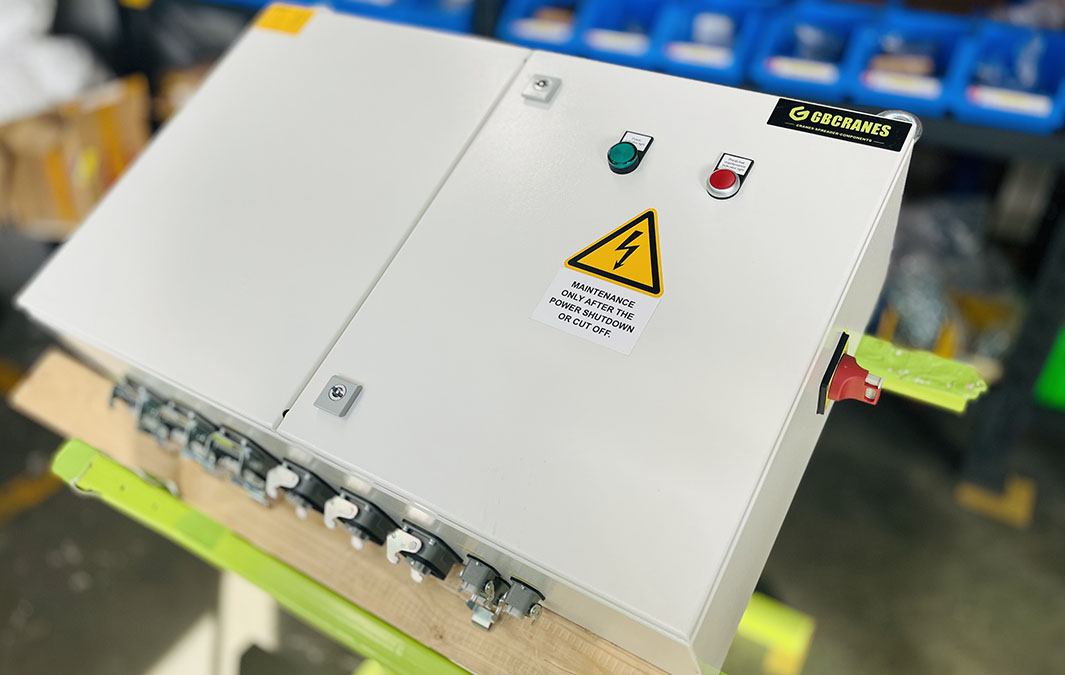

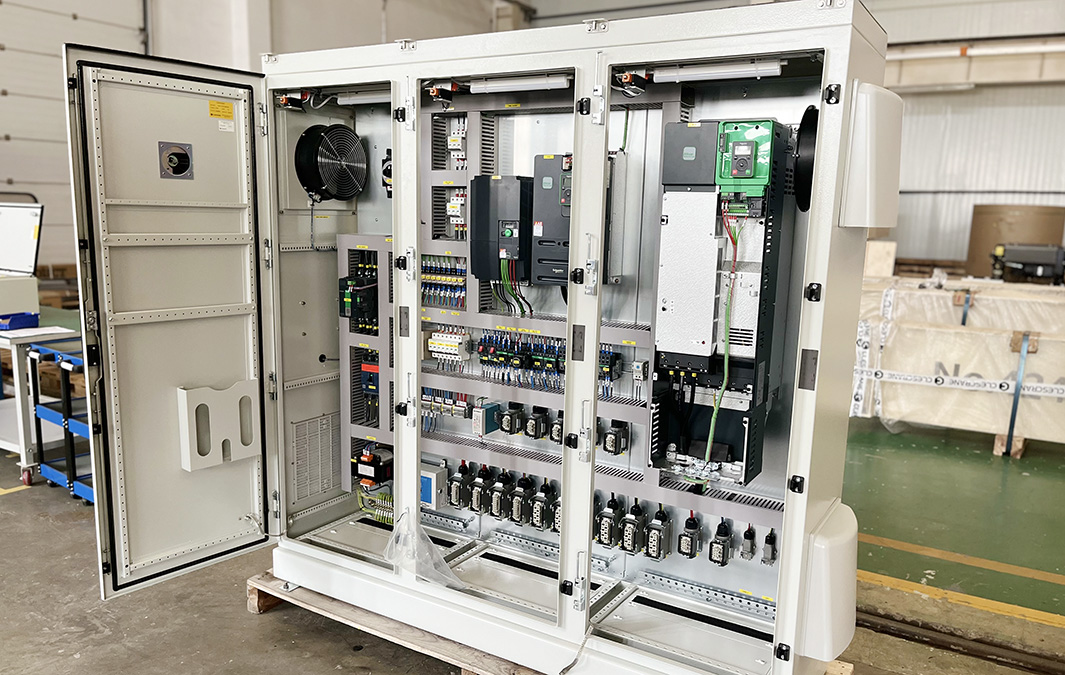

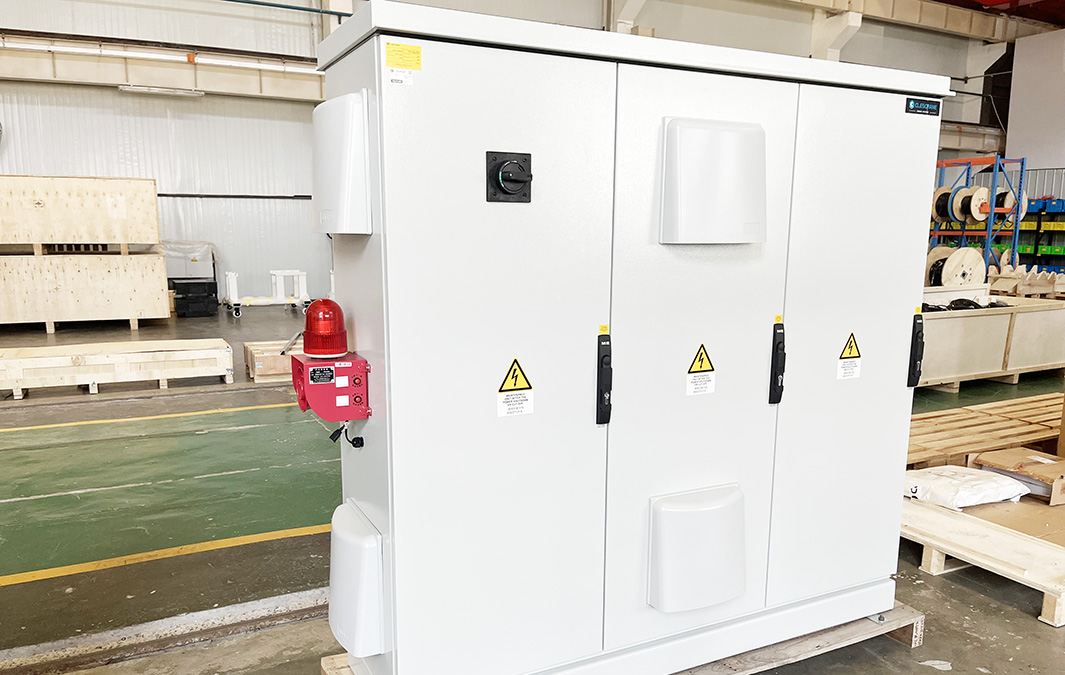

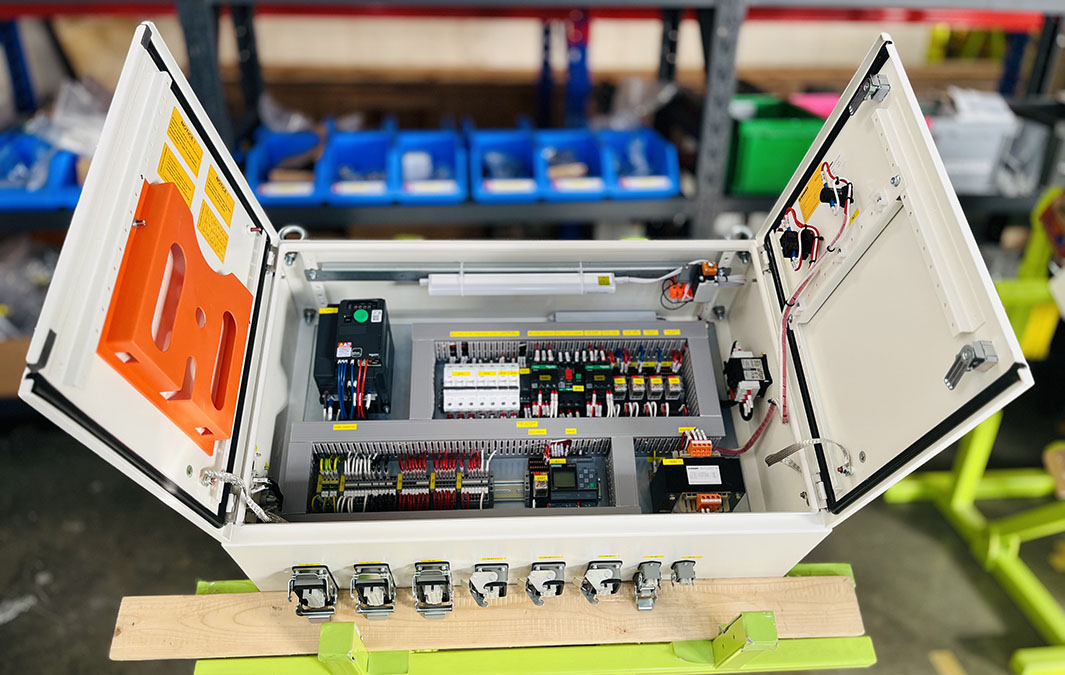

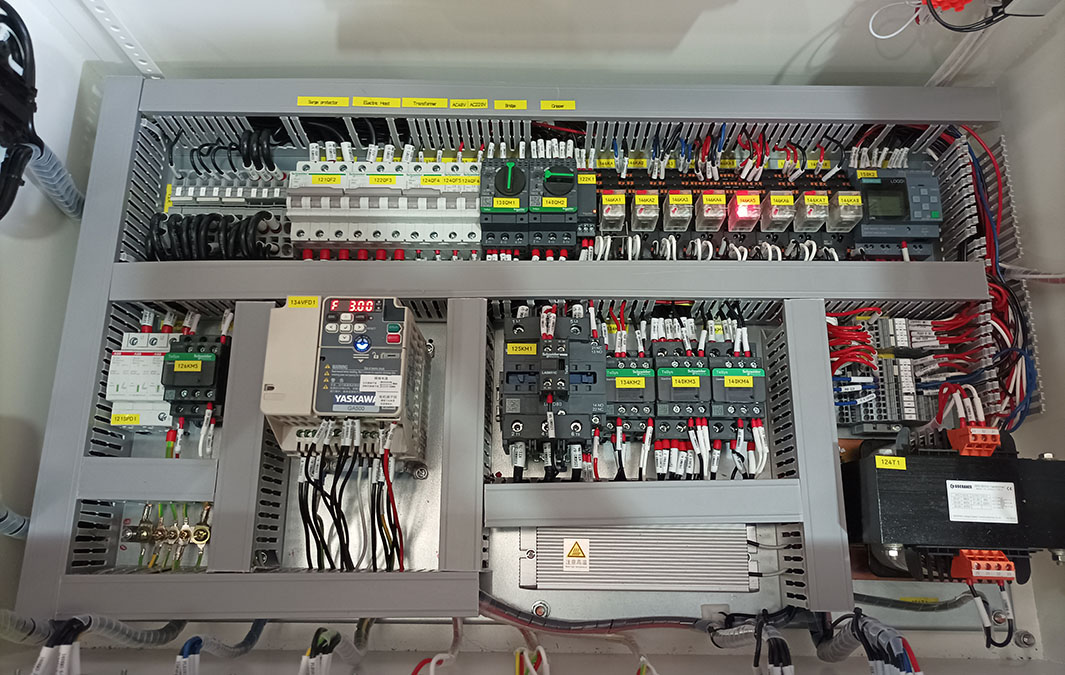

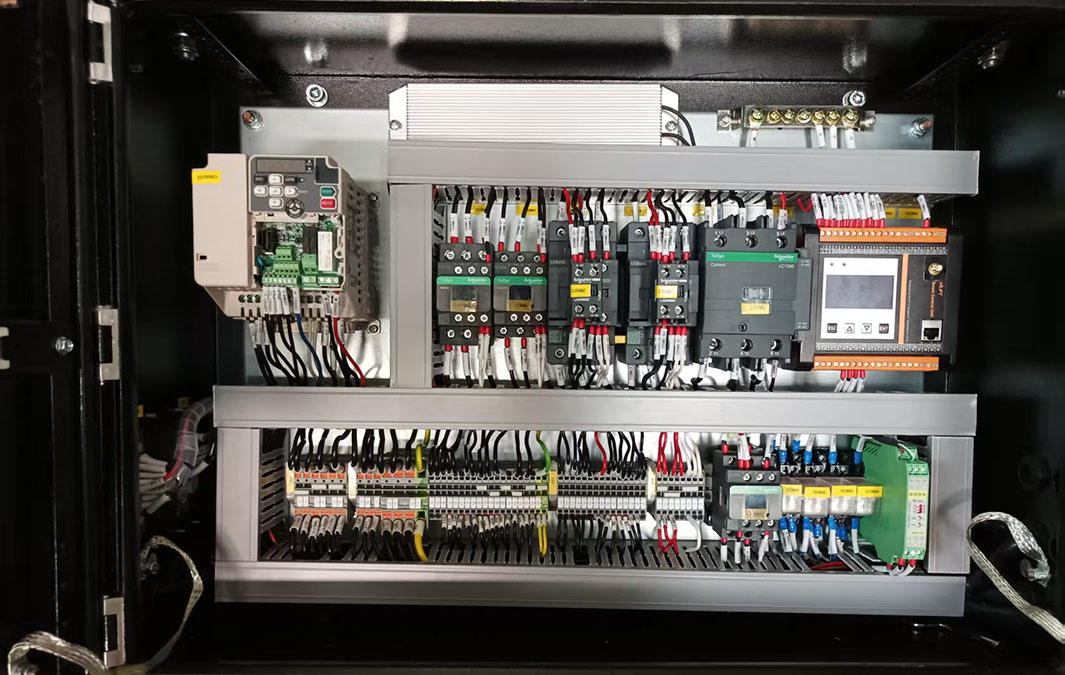

Basic Electric Control
Our crane control panels meets the following standards:
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards
YOUR CONTACT
Overview
Our crane control panels meets the following standards:
IEC60947-1/2 standard
EN60439-1 standard
GB7251.1:2 standard
international standards

Basic electronic control standard configuration of Clescrane:
Item Brand
Electric Cabinet Me
Lighting Lamp+Door Limit Me
Electric Cabinet Cable Lapp
Frequency Converter Schneider/Abb

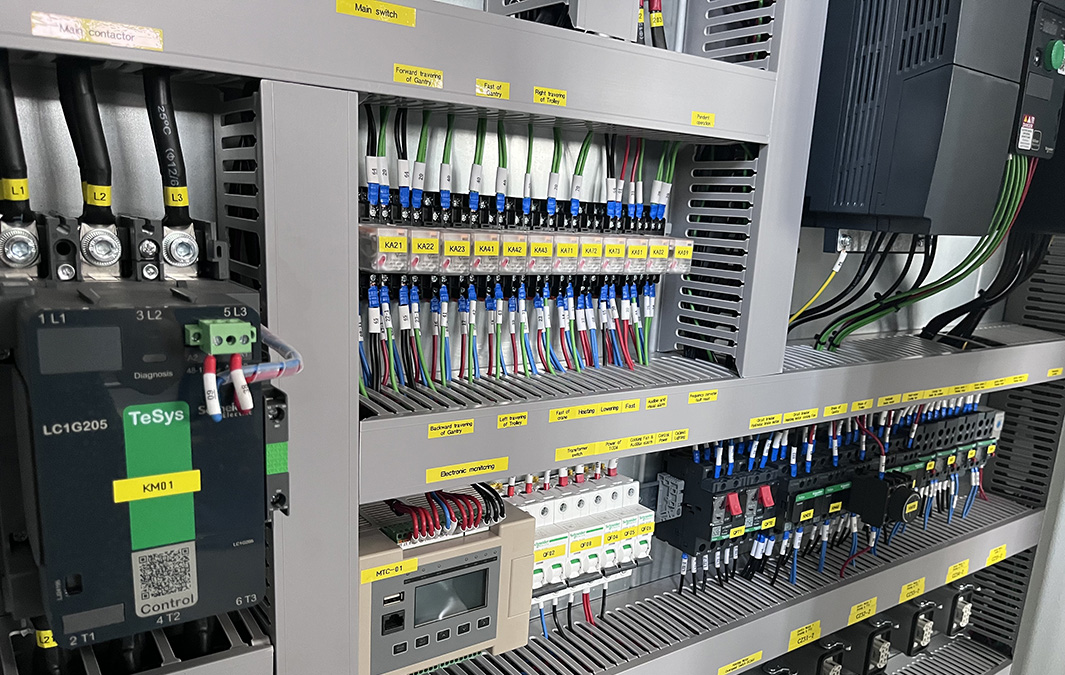

Electrical Components Schneider
Intermediate Relay Weidmuller
Monorail Weidmuller
Transformer Clescrane
Terminal Weidmuller/Wago
Fan Ebm
Braking Resistance Clescrane
Indicator Light Eaton Moeller

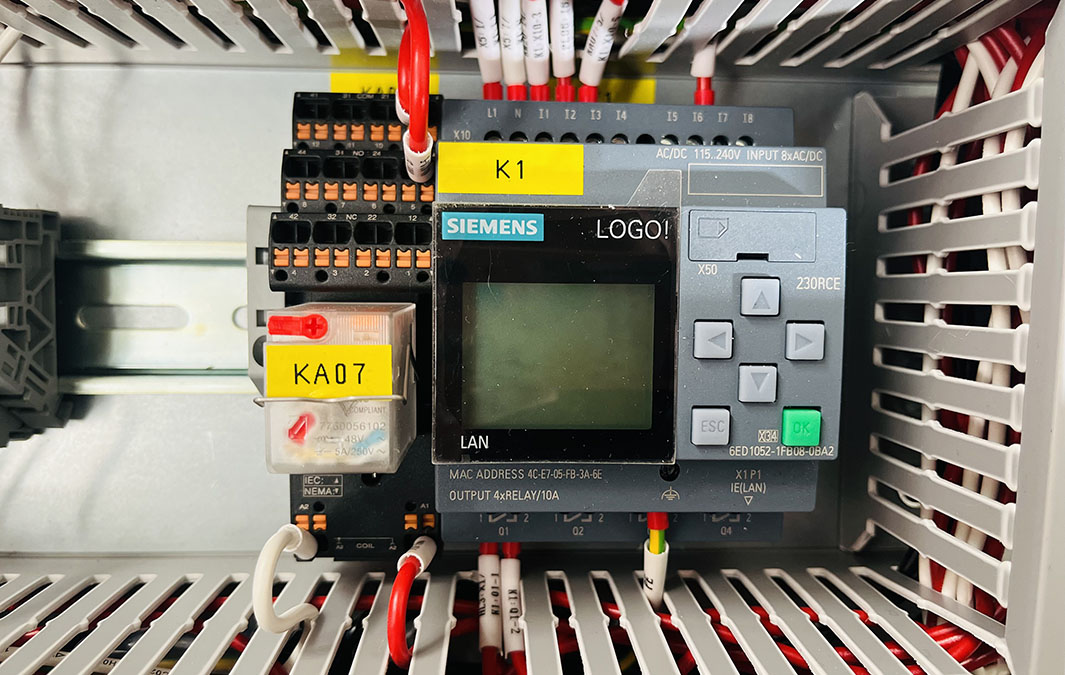

PLC Siemens
Touch Screen Siemens

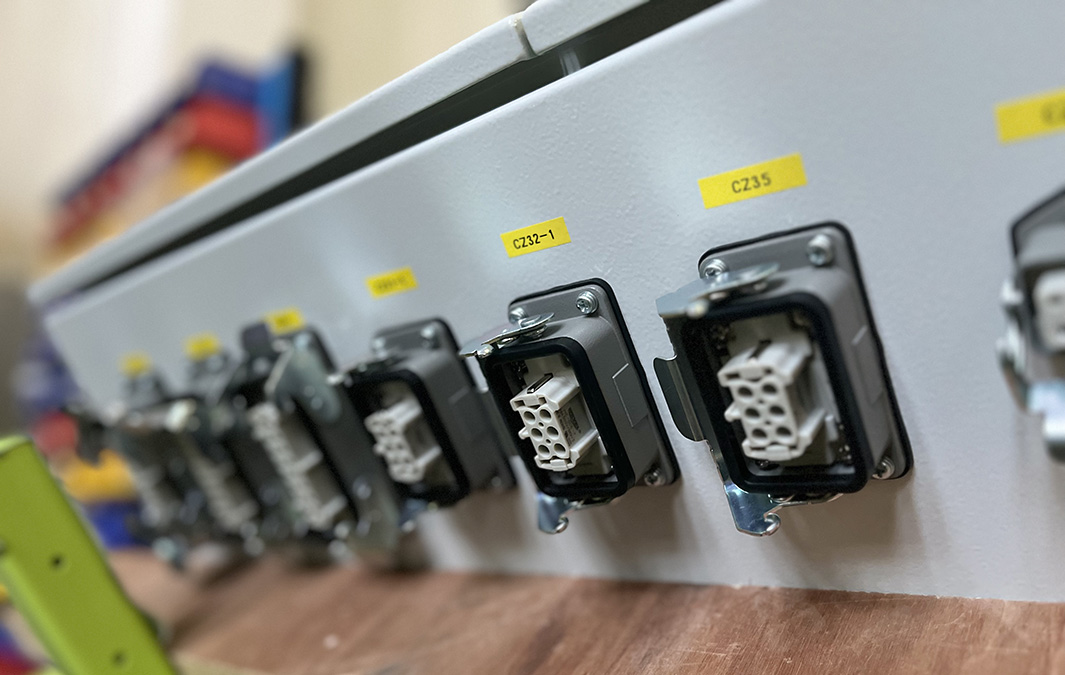

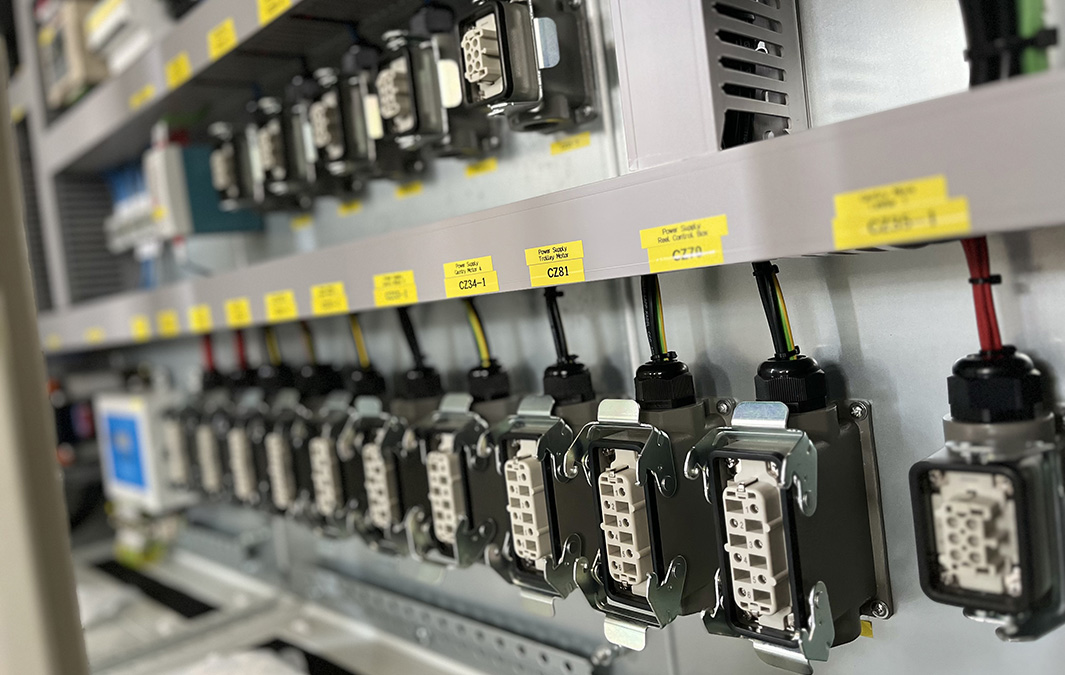

Heavy Load Connector Wevel
Isolating Switch Schneider
Timer/Counter Autonics
Single Girder Crane Control Panels Technical Parameters
Single Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
Ton. Model Rated voltage Rated control voltage Rated current Span Crane rated power External dimensions Installation method
3T GECS03T0160448 3PH AC380-460V 50/60HZ AC48V 50/60Hz 16A 2x0.37KW 900*550*250 Hanging type
5T GECS05T0250448 3PH AC380-460V 50/60HZ AC48V 50/60Hz 25A ≤20.5M 2x0.55KW 900*550*250 Hanging type
GECS05T0250948 3PH AC380-460V 50/60HZ AC48V 50/60Hz 25A ≥23.5M 2x0.75KW 900*550*250 Hanging type
10T GECS10T0400948 3PH AC380-460V 50/60HZ AC48V 50/60Hz 40A ≤11.5M 2x0.75KW 900*550*250 Hanging type
GECS10T0501348 3PH AC380-460V 50/60HZ AC48V 50/60Hz 50A ≥18.5M 2x1.1KW 900*550*250 Hanging type

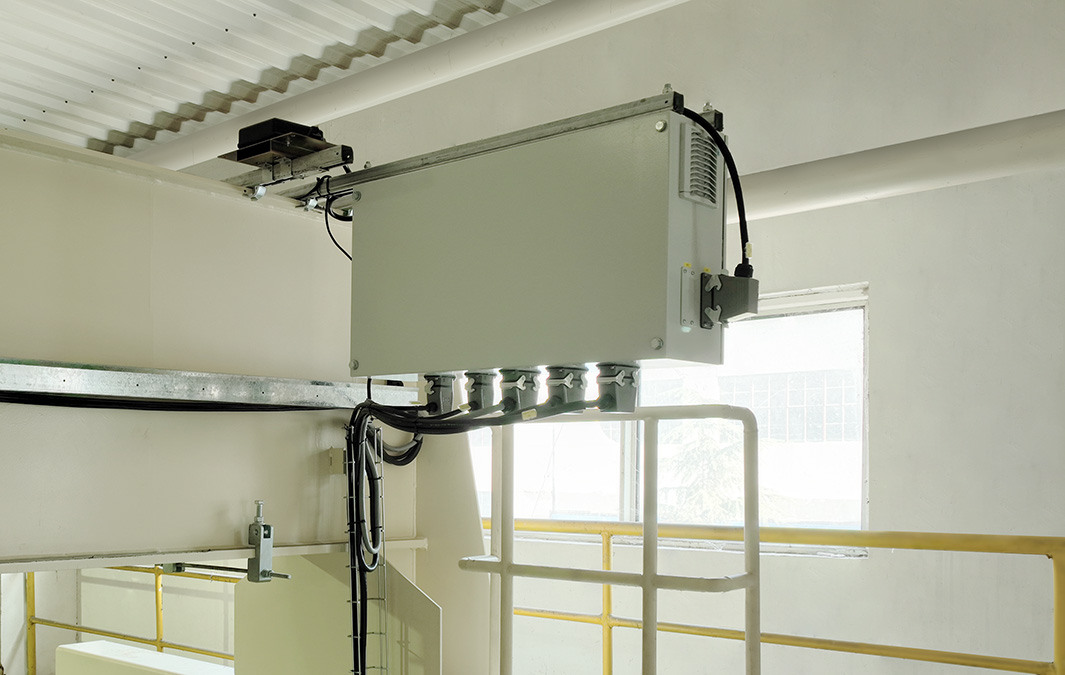

20T GECS20T0631348 3PH AC380-460V 50/60HZ AC48V 50/60Hz 50A ≤11.5M 2x1.5KW 1050*650*250 Hanging type
GECS20T0631648 3PH AC380-460V 50/60HZ AC48V 50/60Hz 63A ≥18.5M 2x2.2KW 1050*650*250 Hanging type
Double Girder Crane Control Panels Technical Parameters
Double Girder Crane Control Panels Technical Parameters (Pendant + Remote control)
Ton. Model Rated voltage Rated control voltage Rated current Span Crane rated power External dimensions Installation method
3T GECD03T0160448 3PH AC380-460V 50/60HZ AC48V 50/60Hz 16A 2x0.55KW 900*550*250 Wall mounted
5T GECD05T0250448 3PH AC380-460V 50/60HZ AC48V 50/60Hz 25A ≤21.5M 2x0.75KW 900*550*250 Wall mounted
GECD05T0250948 SPH AC380-4607 50/60HZ AC48V 50/60Hz 25A ≥22.5M 2x1.1KW 900*550*250 Wall mounted
10T GECD10T0400948 3PH AC380-460V 50/60HZ AC48V 50/60Hz 40A ≤21.5M 2x1.1KW 900*550*250 Wall mounted
GECD10T0501348 3PH AC380-460V 50/60HZ AC48V 50/60Hz 50A ≥22.5M 2x1.5KW 1200*750*250 Wall mounted
20T GECD20T0631348 3PH AC380-460V 50/60HZ AC48V 50/60Hz 63A ≤16.5M 2x1.5KW 1200*750*250 Wall mounted
GECD20T0631648 3PH AC380-460Y 50/60HZ AC48V 50/60Hz 63A ≥17.5M 2x2.2KW 1200*750*250 Wall mounted
32T GECD32T0801648 3PH AC380-460V 50/60HZ AC48V 50/60Hz 80A ≤15.5M 2x2.2KW 1200*750*250 Wall mounted
GECD32T0802048 3PH AC880-460V 50/60HZ AC48V 50/60Hz 80A ≥16.5M 2x3KW 1200*750*250 Wall mounted
50T GECD50T1252048 3PH AC380-460V 50/60HZ AC48V 50/60Hz 125A ≤21.5M 2x3KW 1200*750*250 Wall mounted
GECD50T1252548 3PH AC380-460V 50/60HZ AC48V 50/60Hz 125A ≥22.5M 2x4KW 1200*750*250 Wall mounted
